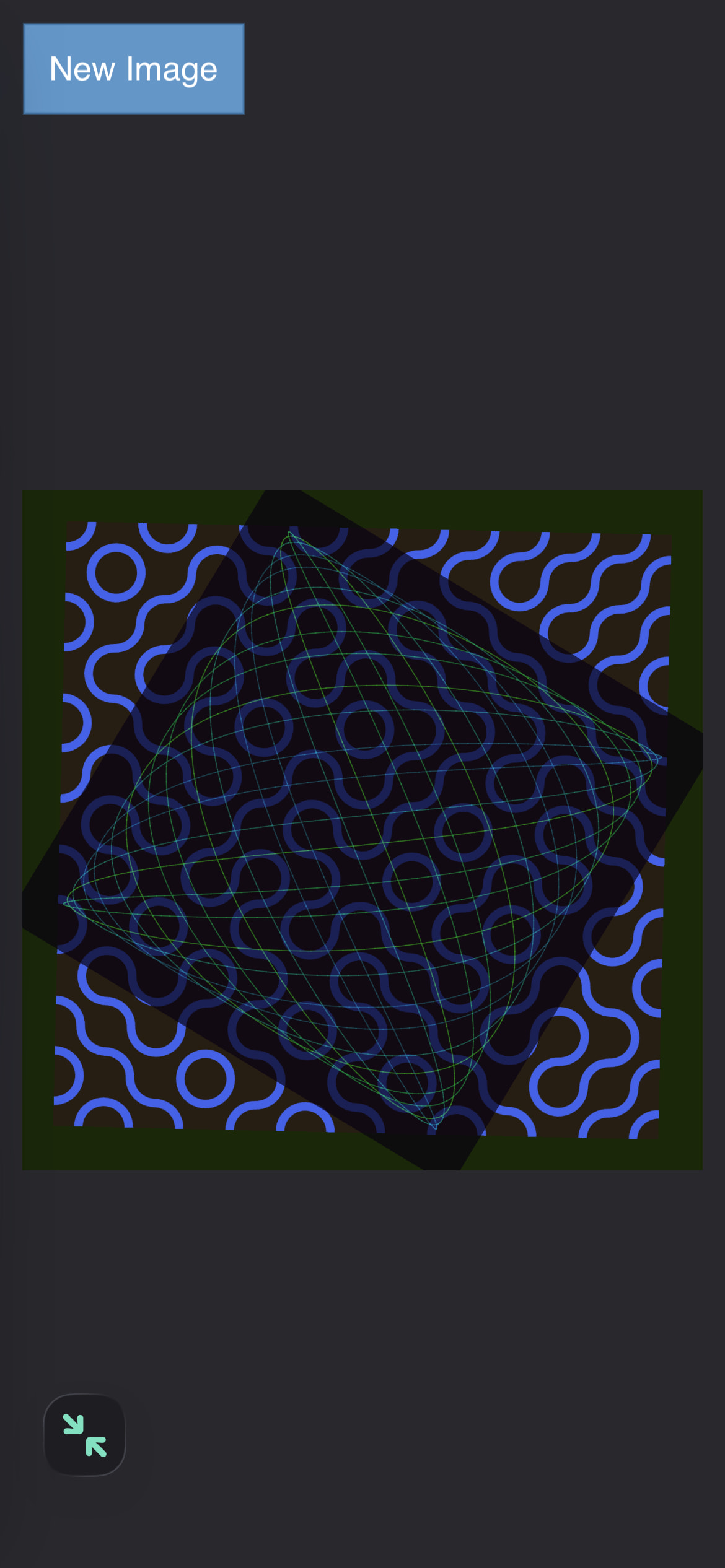

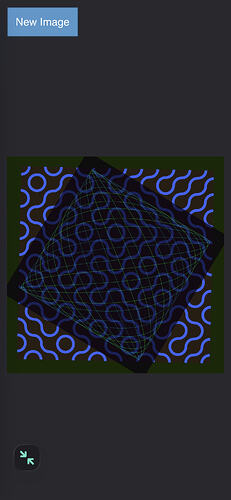

This is nothing special it just generates placeholder images, when you need such a thing.
They’re not especially complex but they layer a few different procedural patterns on top of each other in different ways—the effect being that you can usually tell the images apart very easily, which can be helpful.
Here’s the project, usable as a dependency:
PlaceholderImage.zip (285.4 KB)
@Steppers (was not able to upload to WebRepo btw)
Noted! Sorry, I’ve been a little busy recently. I’ll look into it when I can
The (Claude) code:
--# Main
-- =========================================
-- Main
-- Simple placeholder image viewer with
-- "New Image" button
-- =========================================
local currentImage = nil
local buttonRect = {x=0, y=0, w=0, h=0}
local padding = 12
local buttonHeight = 50
function setup()
-- Generate initial image
generateNewImage()
end
function draw()
background(40, 40, 45)
-- Calculate button area
buttonRect.x = padding
buttonRect.y = HEIGHT - buttonHeight - padding
buttonRect.w = 120
buttonRect.h = buttonHeight
-- Draw button
drawButton()
-- Draw current image centered
if currentImage then
local imgW = currentImage.width
local imgH = currentImage.height
local availH = HEIGHT - buttonHeight - padding * 3
-- Scale to fit
local scale = math.min(
(WIDTH - padding * 2) / imgW,
availH / imgH
)
local drawW = imgW * scale
local drawH = imgH * scale
local drawX = WIDTH * 0.5
local drawY = (availH + padding) * 0.5 + padding
noTint()
sprite(currentImage, drawX, drawY, drawW, drawH)
end
end
function touched(touch)
if touch.state == ENDED then
if pointInRect(touch.x, touch.y, buttonRect) then
generateNewImage()
end
end
end
-- =========================================
-- Helper functions
-- =========================================
function generateNewImage()
local w = 512
local h = 512
currentImage = placeholderImage(w, h)
end
function drawButton()
-- Button background
fill(100, 150, 200, 255)
stroke(70, 120, 170, 255)
strokeWidth(2)
rect(buttonRect.x, buttonRect.y,
buttonRect.w, buttonRect.h)
-- Button text
fill(255, 255, 255, 255)
noStroke()
font("Helvetica")
fontSize(18)
textAlign(CENTER)
text("New Image",
buttonRect.x + buttonRect.w * 0.5,
buttonRect.y + buttonRect.h * 0.5)
end
function pointInRect(px, py, rect)
return px >= rect.x and
px <= rect.x + rect.w and
py >= rect.y and
py <= rect.y + rect.h
end
--# PlaceholderImage
-- PlaceholderImage.lua
-- Six procedural image generators.
-- Usage:
-- local img = PlaceholderImage.generate(w, h)
-- local img = PlaceholderImage.generate(w, h, {mode="flowfield"})
-- Modes: "flowfield", "circlepack", "mondrian", "phyllotaxis", "lissajous", "truchet"
PlaceholderImage = {}
local MODES = {
"flowfield", "circlepack", "mondrian",
"phyllotaxis", "lissajous", "truchet"
}
-- =========================================
-- Color utilities
-- =========================================
local function hsv(h, s, v)
h = h % 1
local i = math.floor(h * 6)
local f = h * 6 - i
local p = v * (1 - s)
local q = v * (1 - f * s)
local t = v * (1 - (1 - f) * s)
local r, g, b
i = i % 6
if i == 0 then r,g,b = v,t,p
elseif i == 1 then r,g,b = q,v,p
elseif i == 2 then r,g,b = p,v,t
elseif i == 3 then r,g,b = p,q,v
elseif i == 4 then r,g,b = t,p,v
else r,g,b = v,p,q
end
return color(r*255, g*255, b*255, 255)
end
local function randomHue()
return math.random()
end
-- =========================================
-- 1. Flow field
-- Uses noise() to set angles, draws short
-- strokes following the field.
-- =========================================
local function genFlowField(w, h)
local hue = randomHue()
local bg = hsv(hue, 0.7, 0.12)
background(bg.r, bg.g, bg.b, 255)
local nOff = math.random() * 100
local nScale = 0.003 + math.random() * 0.004
local nLines = 500
local nSteps = 30
local stepLen = math.max(w, h) * 0.018
local alpha = 120
strokeWidth(1.2)
noFill()
for _ = 1, nLines do
local x = math.random() * w
local y = math.random() * h
local sat = 0.5 + math.random() * 0.5
local val = 0.6 + math.random() * 0.4
local c = hsv(hue + math.random() * 0.15 - 0.07, sat, val)
stroke(c.r, c.g, c.b, alpha)
for _ = 1, nSteps do
local nx = x * nScale + nOff
local ny = y * nScale + nOff
local angle = noise(nx, ny) * math.pi * 4
local x2 = x + math.cos(angle) * stepLen
local y2 = y + math.sin(angle) * stepLen
line(x, y, x2, y2)
x, y = x2, y2
if x < 0 or x > w or y < 0 or y > h then break end
end
end
end
-- =========================================
-- 2. Circle packing
-- Place non-overlapping circles, grow them.
-- =========================================
local function genCirclePack(w, h)
local hue = randomHue()
local bg = hsv(hue + 0.5, 0.6, 0.1)
background(bg.r, bg.g, bg.b, 255)
local circles = {}
local maxR = math.min(w, h) * 0.18
local minR = math.min(w, h) * 0.02
local tries = 800
local function overlaps(cx, cy, cr)
for _, c in ipairs(circles) do
local dx = cx - c.x
local dy = cy - c.y
if dx*dx + dy*dy < (cr + c.r + 2)^2 then
return true
end
end
return false
end
for _ = 1, tries do
local cx = minR + math.random() * (w - minR * 2)
local cy = minR + math.random() * (h - minR * 2)
if not overlaps(cx, cy, minR) then
-- grow
local cr = minR
while cr < maxR do
if overlaps(cx, cy, cr + 1) then break end
cr = cr + 1
end
table.insert(circles, {x=cx, y=cy, r=cr})
end
end
noStroke()
for _, c in ipairs(circles) do
local t = c.r / maxR
local col = hsv(hue + t * 0.3, 0.7, 0.4 + t * 0.5)
fill(col.r, col.g, col.b, 210)
ellipse(c.x, c.y, c.r * 2)
-- inner highlight
fill(255, 255, 255, 30)
ellipse(c.x + c.r * 0.2, c.y + c.r * 0.2, c.r * 0.6)
end
end
-- =========================================
-- 3. Mondrian
-- Recursive rectangle subdivision.
-- =========================================
local function genMondrian(w, h)
background(240, 235, 220, 255)
local COLORS = {
color(220, 50, 40),
color(30, 80, 160),
color(240, 200, 50),
color(240, 235, 220),
color(240, 235, 220),
color(240, 235, 220),
}
local rects = {}
local border = 3
local function split(x, y, rw, rh, depth)
if depth == 0 or (rw < w*0.12 and rh < h*0.12) then
table.insert(rects, {x=x, y=y, w=rw, h=rh})
return
end
local horiz = rh > rw
if rw > w * 0.5 and rh > h * 0.5 then
horiz = math.random() < 0.5
elseif rw > rh then
horiz = false
end
if horiz then
local cut = rh * (0.3 + math.random() * 0.4)
split(x, y, rw, cut, depth - 1)
split(x, y+cut, rw, rh-cut, depth - 1)
else
local cut = rw * (0.3 + math.random() * 0.4)
split(x, y, cut, rh, depth - 1)
split(x+cut, y, rw-cut, rh, depth - 1)
end
end
split(0, 0, w, h, 5)
for _, r in ipairs(rects) do
local c = COLORS[math.random(#COLORS)]
fill(c.r, c.g, c.b, 255)
stroke(20, 20, 20, 255)
strokeWidth(border * 2)
rect(r.x + border, r.y + border,
r.w - border*2, r.h - border*2)
end
end
-- =========================================
-- 4. Phyllotaxis
-- Sunflower spiral using golden angle.
-- =========================================
local function genPhyllotaxis(w, h)
local hue = randomHue()
local bg = hsv(hue + 0.5, 0.8, 0.08)
background(bg.r, bg.g, bg.b, 255)
local golden = math.pi * (3 - math.sqrt(5))
local n = 600 + math.random(300)
local scale = math.min(w, h) * 0.46
local cx = w * 0.5
local cy = h * 0.5
local spread = 0.95 + math.random() * 0.3
noStroke()
for i = 1, n do
local r = scale * math.sqrt(i / n) * spread
local theta = i * golden
local x = cx + r * math.cos(theta)
local y = cy + r * math.sin(theta)
local t = i / n
local size = (2 + t * 6)
local col = hsv(hue + t * 0.25, 0.8, 0.5 + t * 0.5)
fill(col.r, col.g, col.b, 200)
ellipse(x, y, size, size)
end
end
-- =========================================
-- 5. Lissajous
-- Parametric curves: x=sin(at+d), y=sin(bt)
-- =========================================
local function genLissajous(w, h)
local hue = randomHue()
local bg = hsv(hue + 0.5, 0.9, 0.07)
background(bg.r, bg.g, bg.b, 255)
-- Pick two small coprime-ish integers for a, b
local pairs_ab = {
{1,2},{1,3},{2,3},{3,4},{3,5},{4,5},{5,6},{2,5}
}
local ab = pairs_ab[math.random(#pairs_ab)]
local a = ab[1]
local b = ab[2]
local delta = math.random() * math.pi
local nCurves = 4
local steps = 600
local rx = w * 0.42
local ry = h * 0.42
local cx = w * 0.5
local cy = h * 0.5
noFill()
for c = 1, nCurves do
local d = delta + (c - 1) * math.pi / (nCurves * 2)
local col = hsv(hue + c / nCurves * 0.3, 0.8, 0.9)
stroke(col.r, col.g, col.b, 180 - c * 20)
strokeWidth(1.5)
local prev_x, prev_y
for i = 0, steps do
local t = i / steps * math.pi * 2
local x = cx + rx * math.sin(a * t + d)
local y = cy + ry * math.sin(b * t)
if prev_x then line(prev_x, prev_y, x, y) end
prev_x, prev_y = x, y
end
end
end
-- =========================================
-- 6. Truchet tiles
-- Grid of squares with randomly oriented arcs.
-- =========================================
local function genTruchet(w, h)
local hue = randomHue()
local bg = hsv(hue, 0.5, 0.15)
background(bg.r, bg.g, bg.b, 255)
local cols = 10 + math.random(6)
local rows = cols
local tw = w / cols
local th = h / rows
local lw = tw * 0.18
noFill()
local fg = hsv(hue + 0.55, 0.7, 0.9)
stroke(fg.r, fg.g, fg.b, 220)
strokeWidth(lw)
-- Each tile: two quarter-circle arcs, one of two orientations
-- Orientation 0: arcs connect bottom-left to top-left, and top-right to bottom-right
-- Orientation 1: arcs connect bottom-left to bottom-right, and top-left to top-right
-- We approximate arcs with line segments
local arcSteps = 12
local function arc(ox, oy, r, startAngle, endAngle)
local prev_x, prev_y
for i = 0, arcSteps do
local t = i / arcSteps
local angle = startAngle + t * (endAngle - startAngle)
local x = ox + r * math.cos(angle)
local y = oy + r * math.sin(angle)
if prev_x then line(prev_x, prev_y, x, y) end
prev_x, prev_y = x, y
end
end
for col = 0, cols - 1 do
for row = 0, rows - 1 do
local x = col * tw
local y = row * th
local cx = x + tw * 0.5
local cy = y + th * 0.5
if math.random() < 0.5 then
-- Arcs from corners: BL-TL and TR-BR
arc(x, y, tw*0.5, 0, math.pi*0.5)
arc(x + tw, y + th, tw*0.5, math.pi, math.pi*1.5)
else
-- Arcs from corners: BL-BR and TL-TR
arc(x, y + th, tw*0.5, -math.pi*0.5, 0)
arc(x + tw, y, tw*0.5, math.pi*0.5, math.pi)
end
end
end
end
-- =========================================
-- Public API
-- =========================================
local generators = {
flowfield = genFlowField,
circlepack = genCirclePack,
mondrian = genMondrian,
phyllotaxis = genPhyllotaxis,
lissajous = genLissajous,
truchet = genTruchet,
}
function PlaceholderImage.generate(w, h, opts)
opts = opts or {}
-- Pick two different modes
local shuffled = {table.unpack(MODES)}
for i = #shuffled, 2, -1 do
local j = math.random(i)
shuffled[i], shuffled[j] = shuffled[j], shuffled[i]
end
local modeA = opts.mode or shuffled[1]
local modeB = shuffled[2]
-- Random background
local bgCol = hsv(math.random(), 0.4 + math.random() * 0.4, 0.1 + math.random() * 0.2)
-- Generate each pattern into its own offscreen image
local function makeLayer(modeName)
local img = image(w, h)
setContext(img)
pushStyle()
background(0, 0, 0, 0)
generators[modeName](w, h)
popStyle()
setContext()
return img
end
local imgA = makeLayer(modeA)
local imgB = makeLayer(modeB)
-- Composite onto final image
local final = image(w, h)
setContext(final)
pushStyle()
-- Background
background(bgCol.r, bgCol.g, bgCol.b, 255)
local function drawTransformed(img, alpha)
local angle = math.random() * 360
local zoom = 0.7 + math.random() * 0.9
pushMatrix()
translate(w * 0.5, h * 0.5)
rotate(angle)
scale(zoom)
translate(-w * 0.5, -h * 0.5)
tint(255, 255, 255, alpha)
sprite(img, w * 0.5, h * 0.5, w, h)
noTint()
popMatrix()
end
drawTransformed(imgA, 255)
drawTransformed(imgB, 80 + math.random(140))
popStyle()
setContext()
return final, modeA .. "+" .. modeB
end
function PlaceholderImage.modes()
return MODES
end
-- =========================================
-- Simple wrapper for convenience
-- =========================================
function placeholderImage(w, h)
local img, modes = PlaceholderImage.generate(w, h)
return img
end
