How to draw a rounded rectangle with a custom corner radius in Codea?

Questions
1

Hi! I have a question about drawing a rounded rectangle in Codea.

I currently draw a semi-transparent black rectangle like this:

rectMode(CENTER)
noStroke()
fill(0, 0, 0, 191)

rect(
panelX,
panelY,
panelW,
panelH
)

The rectangle is approximately 1856 × 1138 px. It’s Works but cant add corners.

I would like to give it strongly rounded corners, with a radius of around 200–220 px, but the radius does not work.

What is the correct way to draw a filled rounded rectangle with a custom corner radius in the current version of Codea?

Ideally, I’m looking for a clean solution without manually constructing the shape from rectangles and circles.

2

This will let you customize the corner radius:

--# RoundedRect
-- A cheap rounded rect: one mesh and one shader, built once and restyled on
-- every call rather than rebuilt. The original version of this shader mixed
-- fillColor and strokeColor backwards, so the interior painted as the stroke
-- and the border painted as the fill; the mix() arguments below are swapped
-- to fix that.

RoundedRectVertexShader = [[
precision highp float;
uniform mat4 modelViewProjection;
attribute vec4 position;
attribute vec2 texCoord;
varying highp vec2 vTexCoord;
void main() {
vTexCoord = texCoord;
gl_Position = modelViewProjection * position;
}
]]

RoundedRectFragmentShader = [[
precision highp float;
uniform lowp vec4 fillColor;
uniform lowp vec4 strokeColor;
uniform vec2 rectSize;
uniform float cornerRadius;
uniform float strokeWidth;
uniform float edgeSoftness;
varying highp vec2 vTexCoord;
float sdRoundedRect(vec2 p, vec2 halfSize, float r) {
vec2 q = abs(p) - (halfSize - vec2(r));
return length(max(q, vec2(0.0))) + min(max(q.x, q.y), 0.0) - r;
}
void main() {
vec2 halfSize = rectSize * 0.5;
vec2 p = (vTexCoord - 0.5) * rectSize;
float d = sdRoundedRect(p, halfSize, cornerRadius);
float aa = max(edgeSoftness, 0.75);
float shapeAlpha = 1.0 - smoothstep(0.0, aa, d);
// 0 in the deep interior, 1 once within strokeWidth of the edge
float towardEdge = smoothstep(-strokeWidth - aa, -strokeWidth + aa, d);
lowp vec4 c = mix(fillColor, strokeColor, towardEdge);
gl_FragColor = vec4(c.rgb, c.a * shapeAlpha);
}
]]

local sharedMesh = nil

function roundedRectMesh()
  if sharedMesh then return sharedMesh end
  sharedMesh = mesh()
  local rect = sharedMesh:addRect(0, 0, 1, 1)
  sharedMesh:setRectTex(rect, 0, 0, 1, 1)
  sharedMesh.shader = shader(RoundedRectVertexShader, RoundedRectFragmentShader)
  return sharedMesh
end

function drawRoundedRect(x, y, w, h, radius, fillCol, strokeCol, strokeW)
  local m = roundedRectMesh()
  m.shader.fillColor = fillCol
  m.shader.strokeColor = strokeCol or color(0, 0, 0, 0)
  m.shader.rectSize = vec2(w, h)
  m.shader.cornerRadius = radius or 0
  m.shader.strokeWidth = strokeW or 0
  m.shader.edgeSoftness = 1.0
  pushMatrix()
  translate(x + w * 0.5, y + h * 0.5)
  scale(w, h)
  m:draw()
  popMatrix()
end
3

I got it off a dude used to come around named @yojimbo2000

4

Heres a couple of other methods using just standard drawing:

function setup()
end

-- This function gets called once every frame
function draw()
    -- This sets a dark background color
    background(40, 40, 50)

    smooth() -- needed for lineCapMode
    lineCapMode(ROUND)

    x,y = WIDTH/2, HEIGHT/2
    w,h = 100,100
    r = 5

    strokeWidth(r)
    stroke(255)

    -- rect with rounded corners using lines with lineCapMode(ROUND)
    line(x+w,y+h, x,y+h) -- top
    line(x,y, x,y+h) -- left
    line(x,y, x+w,y) -- bottom
    line(x+w,y+h, x+w,y) --right

    noStroke()
    fill(0, 0, 0, 191)
    rect(
    x,
    y,
    w,
    h
    )

    -- rounding corners with ellipses
    r = 8
    y = y + h + 25
    fill(255)

    ellipse(x,y,r) -- bottom left
    ellipse(x+w,y,r) -- bottom right
    ellipse(x,y+h,r) -- top left
    ellipse(x+w,y+h,r) -- top right

    lineCapMode(SQUARE)
    -- add lines between ellipses here

    fill(0, 0, 0, 191)
    rect(
    x,
    y,
    w,
    h
    )

end

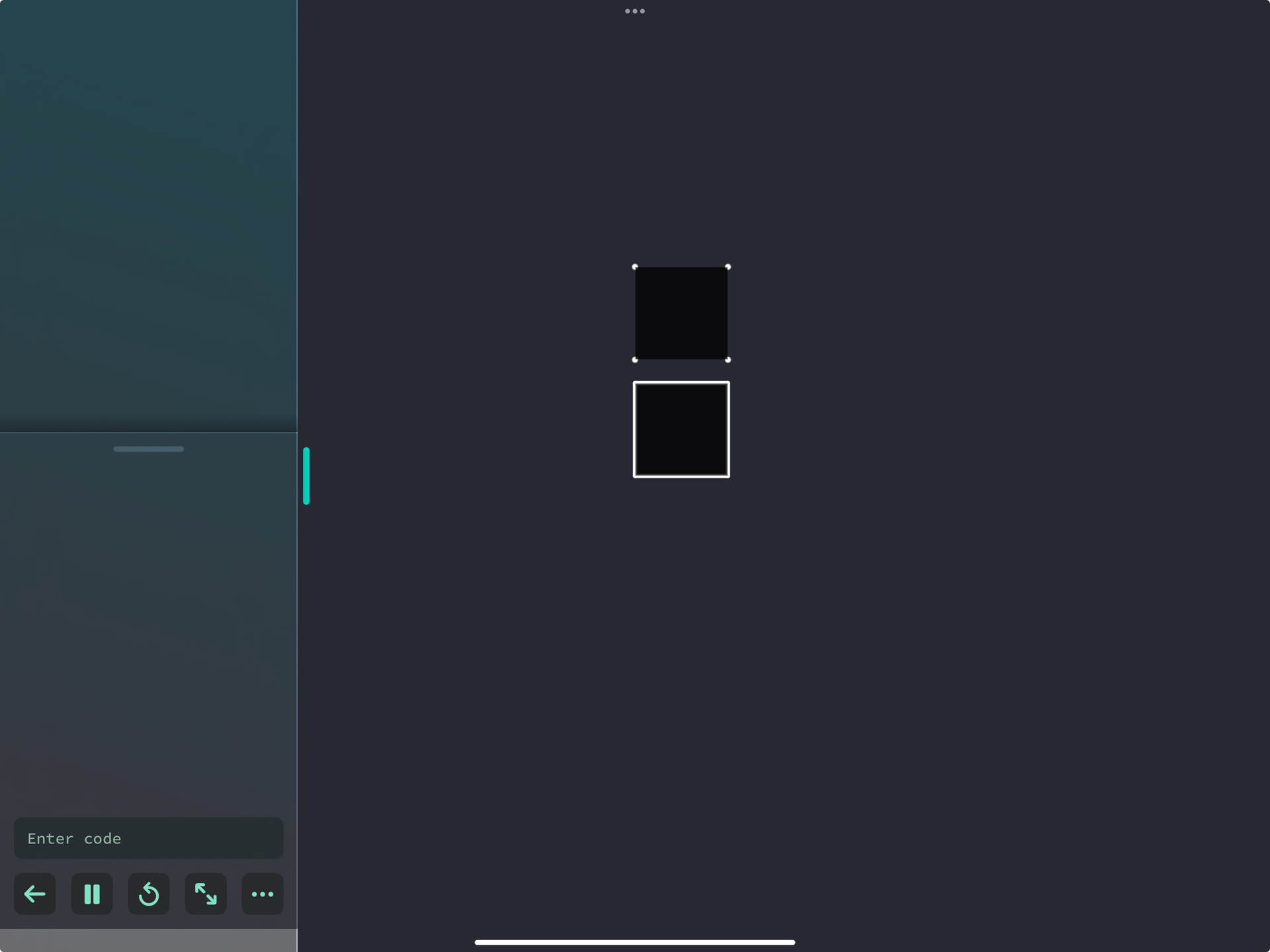

These both work by drawing ellipses in the corners either with line and lineCapMode(ROUND) or with an ellipse placed in each corner to ‘round’ them. I have deliberately set these up to elude to and show how rounded corners work rather than look nice, so they will need some tweaking.

image1920×1439 39.2 KB

5

Right, and those are great, but you can’t use them with transparency. They must be solid. The shader I provided can handle transparency. Not a big deal unless you want that though.
